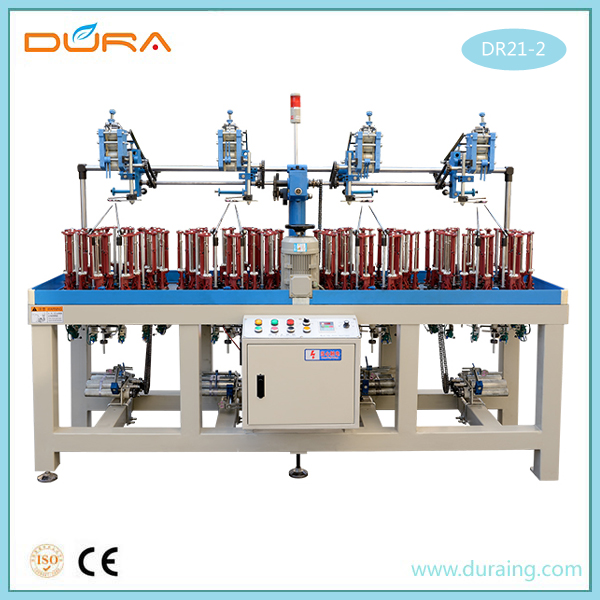

DR21-2 Braiding Machine

Short Description:

we have 2 heads and 4 heads 21 spindle carrier high speed braiding machine, the customers can select 2 heads or 4 heads 21 spindle braiding machine according to their request. Model：DR21-2 Bobbin size (outer diameter * inner diameter * inner height)：48×18×142mm Spindles per head：21 Number of belts (root)：2 Dial speed(RPM)：300 Motor Power(kw)：0.75 Dimensions (L * W*H)：1100×550×1700 mm Model：DR21-4 Bobbin size (outer diameter * inner d...

Brand: DURA

Price: Discuss

Port: Shanghai, Shenzhen,Ningbo

Payment Terms: T/T, L/C, PAYPAL

Delivery Time: 10-25 days

DR21-2 braiding machine: BRAIDING MACHINE

Send email to us Download as PDF

Product Detail

Product Tags

we have 2 heads and 4 heads 21 spindle carrier high speed braiding machine, the customers can select 2 heads or 4 heads 21 spindle braiding machine according to their request.

Model：DR21-2

Bobbin size (outer diameter * inner diameter * inner height)：48×18×142mm

Spindles per head：21

Number of belts (root)：2

Dial speed(RPM)：300

Motor Power(kw)：0.75

Dimensions (L * W*H)：1100×550×1700 mm

Model：DR21-4

Bobbin size (outer diameter * inner diameter * inner height)：48×18×142mm

Spindles per head：21

Number of belts (root)：4

Dial speed(RPM)：300
